I wanted to make something that could shoot nerf darts or disk when triggered. I have been looking around for a nerf blaster that I could modify but I have not been able to find one. I could have used a nerf dart blaster but through the disks or balls would be more interesting to play with.
One day I just ordered some disks to see what I can do with them. After a few tests, I came up with this design.

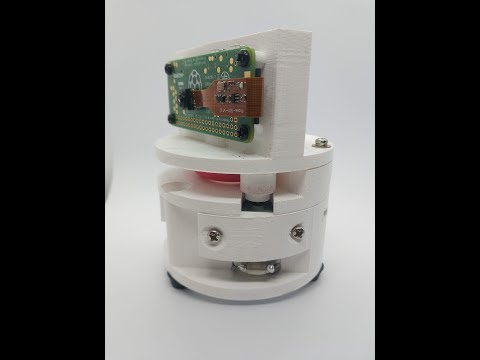

I tried to make the shooter to be a desktop turret with a round body that can put into a tube. after making the turret, I thought it looked cool without the tube.
The Turret
The turret uses normal nerf disks that can be bought from Aliexpress for cheap and uses 2 hobby motors at 12V to shoot the disks. A 9g hobby RC servo is used to push the disks into the motors for shooting.
The system is all controlled from a custom PCB to make the electronics neat and easily mounted.
Files for Project
PCB files.
GNU General Public License v3.0
Code for Project
GNU General Public License v3.0
#include <Servo.h> Servo shootingServo; #define motorpin A1 #define startpin 0 unsigned long lastHigh = 0; void setup() { shootingServo.attach(9); shootingServo.write(0); pinMode(motorpin, OUTPUT); pinMode(startpin, INPUT); pinMode(1, INPUT); digitalWrite(1,HIGH); } void loop() { if(digitalRead(startpin)==HIGH) { lastHigh = millis(); digitalWrite(motorpin,HIGH); shootingServo.write(120); } else { shootingServo.write(40); } if(lastHigh+1000 < millis()) { digitalWrite(motorpin,LOW); shootingServo.write(40); } }
